| Models | Power supply | Sizes (W x D x H) | Files | More info | |
|---|---|---|---|---|---|
|

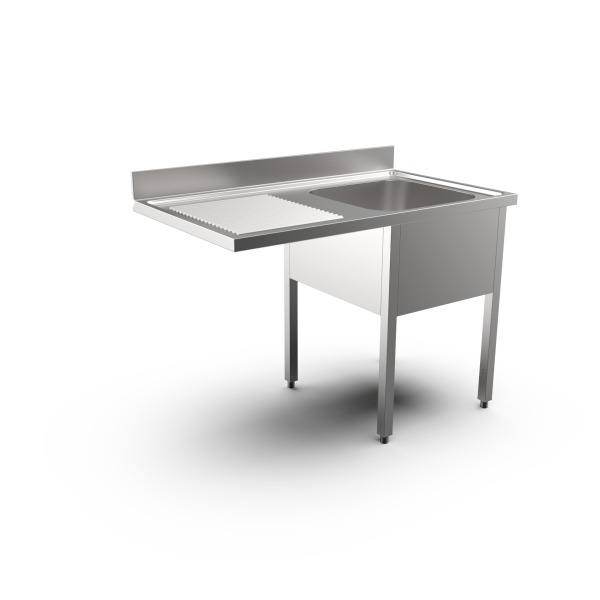

LL127SX DISHWASHER SINK LH DRAINER DISM. 1200 | 1200 x 700 x 850 | Download |
Detail
LL127SX DISHWASHER SINK LH DRAINER DISM. 1200 Stainless steel sink unit with 1 bowl dim. 500x400x300h. Stainless steel structure. Worktop height 40 mm, thickness 1 mm, made of stainless steel, with perimeter rim for water containment. Integrated 100 mm rear upstand with 5 mm. radius. Surrounding panels. Square section legs 40x40 mm on height-adjustable feet. Equipped with drain and overflow pipe. Left drainer.Supplied dismantled. |
|
|

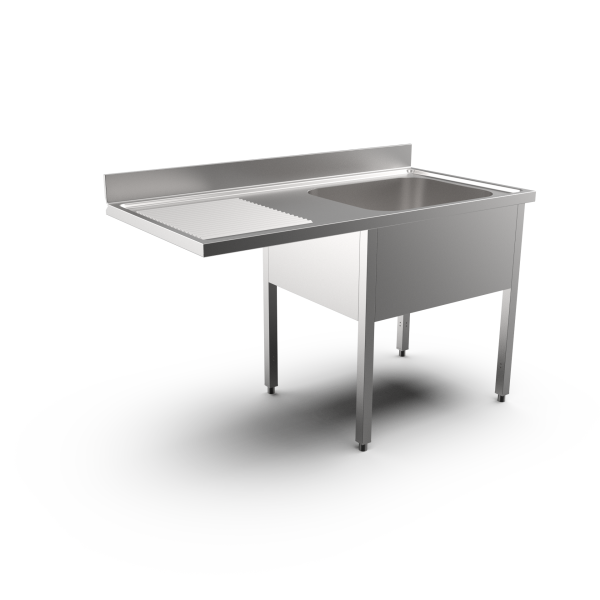

LL147SX DISHWASHER SINK LH DRAINER DISM. 1400 | 1400 x 700 x 850 | Download |
Detail
LL147SX DISHWASHER SINK LH DRAINER DISM. 1400 Stainless steel sink unit with 1 bowl dim. 600x400x315h. Stainless steel structure. Worktop height 40 mm, thickness 1 mm, made of stainless steel, with perimeter rim for water containment. Integrated 100 mm rear upstand with 5 mm. radius. Surrounding panels. Square section legs 40x40 mm on height-adjustable feet. Equipped with drain and overflow pipe. Left drainer. Supplied dismantled. |
|
|

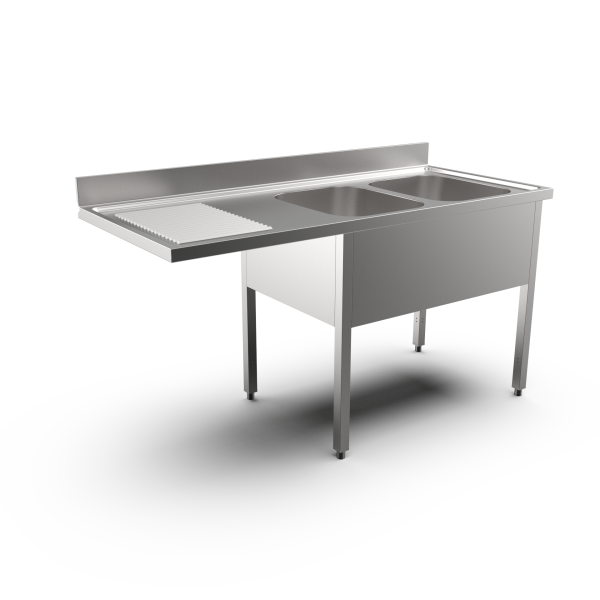

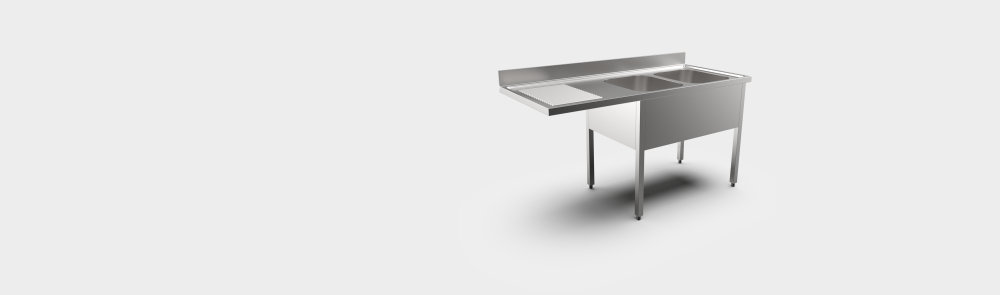

LL167SX DISHWASHER SINK LH DRAINER DISM. 1600 | 1600 x 700 x 850 | Download |
Detail
LL167SX DISHWASHER SINK LH DRAINER DISM. 1600 Stainless steel sink cabinet with 2 bowls dim. 400x500x250h. Stainless steel structure. Worktop height 40 mm, thickness 1 mm, made of stainless steel, with perimeter rim for water containment. Integrated 100 mm rear upstand with 5 mm. radius. Surrounding panels. Square section legs 40x40 mm on height-adjustable feet. Equipped with drain and overflow pipe. Left drainer. Supplied dismantled. |
|
|

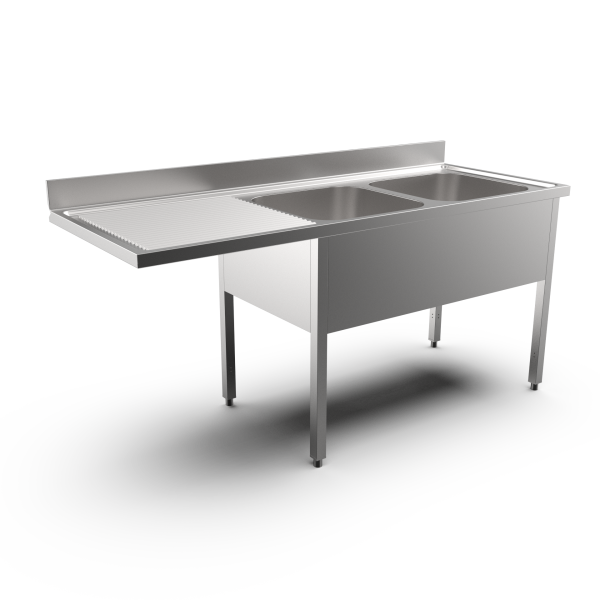

LL187SX DISHWASHER SINK LH DRAINER DISM. 1800 | 1800 x 700 x 850 | Download |
Detail
LL187SX DISHWASHER SINK LH DRAINER DISM. 1800 Stainless steel sink cabinet with 2 bowls dim. 500x500x300h. Stainless steel structure. Worktop height 40 mm, thickness 1 mm, made of stainless steel, with perimeter rim for water containment. Integrated 100 mm rear upstand with 5 mm. radius. Surrounding panels. Square section legs 40x40 mm on height-adjustable feet. Equipped with drain and overflow pipe. Left drainer. Supplied dismantled. |
|
|

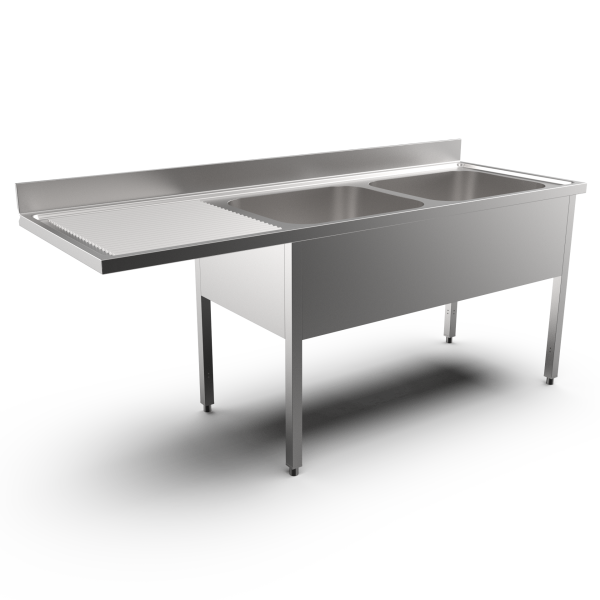

LL207SX DISHWASHER SINK LH DRAINER DISM. 2000 | 2000 x 700 x 850 | Download |
Detail
LL207SX DISHWASHER SINK LH DRAINER DISM. 2000 Stainless steel sink unit with 2 bowls dim. 600x500x315h. Stainless steel structure. Worktop height 40 mm, thickness 1 mm, made of stainless steel, with perimeter rim for water containment. Integrated 100 mm rear upstand with 5 mm. radius. Surrounding panels. Square section legs 40x40 mm on height-adjustable feet. Equipped with drain and overflow pipe. Left drainer. Supplied dismantled. |
|
