| Models | Power supply | Sizes (W x D x H) | Files | More info | |
|---|---|---|---|---|---|
|

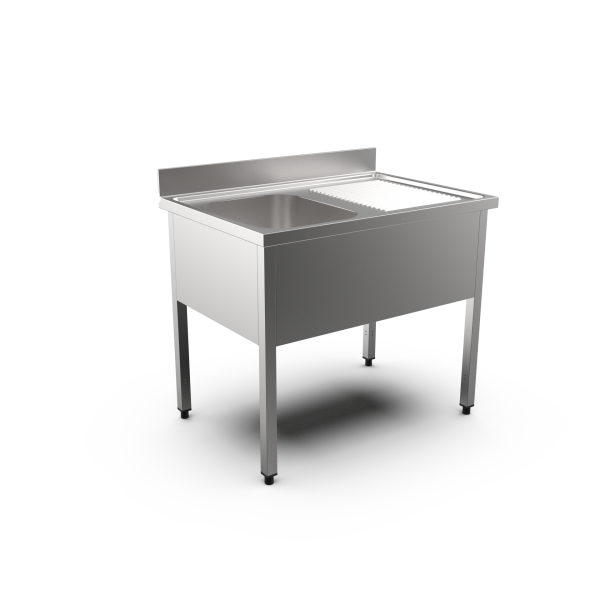

LV1061VDX 1-BOWL SINK RH DRAINER DISM. 1000 | 1000 x 600 x 850 | Download |
Detail
LV1061VDX 1-BOWL SINK RH DRAINER DISM. 1000 Stainless steel sink unit with 1 bowl dim. 500x400x250h. Stainless steel structure. Worktop height 40 mm, thickness 1 mm, made of stainless steel, with perimeter rim for water containment. Integrated 100 mm rear splashback with 5 mm. radius. Panelling on all sides. Square section legs 40x40 mm on height-adjustable feet. Equipped with drain and overflow pipe. Right drainer. Supplied dismantled. |
|
|

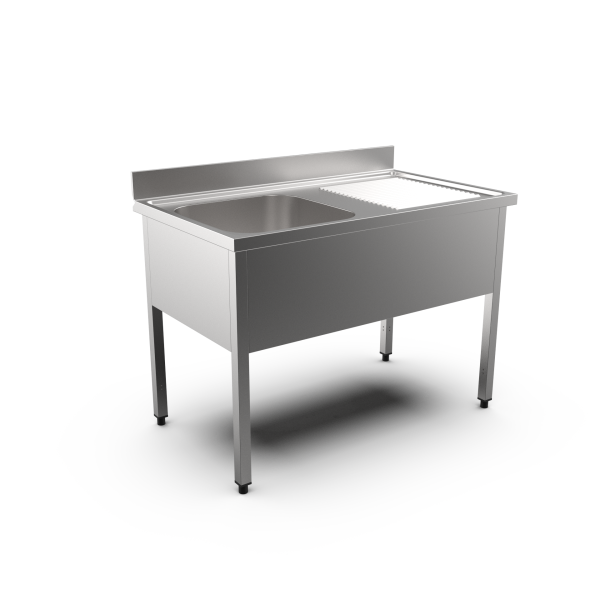

LV1261VDX 1-BOWL SINK RH DRAINER DISM. 1200 | 1200 x 600 x 850 | Download |
Detail
LV1261VDX 1-BOWL SINK RH DRAINER DISM. 1200 Stainless steel sink unit with 1 bowl dim. 500x400x250h. Stainless steel structure. Worktop height 40 mm, thickness 1 mm, made of stainless steel, with perimeter rim for water containment. Integrated 100 mm rear splashback with 5 mm. radius. Panelling on all sides. Square section legs 40x40 mm on height-adjustable feet. Equipped with drain and overflow pipe. Right drainer. Supplied dismantled. |
|
|

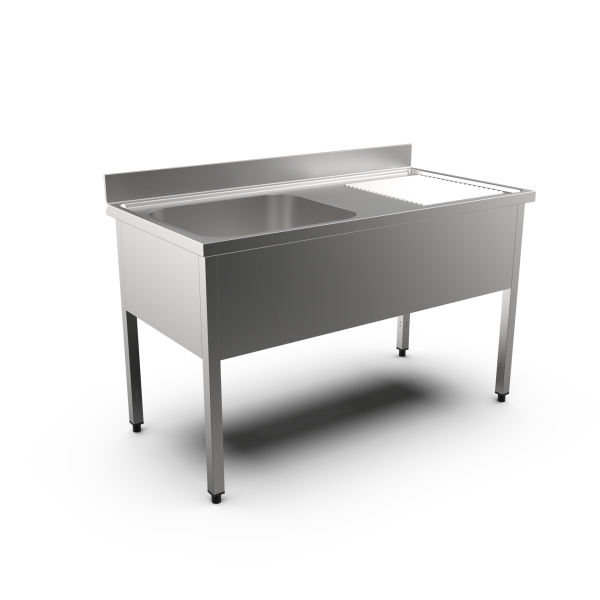

LV1461VDX 1-BOWL SINK RH DRAINER DISM. 1400 | 1400 x 600 x 850 | Download |
Detail
LV1461VDX 1-BOWL SINK RH DRAINER DISM. 1400 Stainless steel sink unit with 1 bowl dim. 500x400x250h. Stainless steel structure. Worktop height 40 mm, thickness 1 mm, made of stainless steel, with perimeter rim for water containment. Integrated 100 mm rear splashback with 5 mm. radius. Panelling on all sides. Square section legs 40x40 mm on height-adjustable feet. Equipped with drain and overflow pipe. Right drainer. Supplied dismantled. |
|
